Beskrivning

Typ av produkt

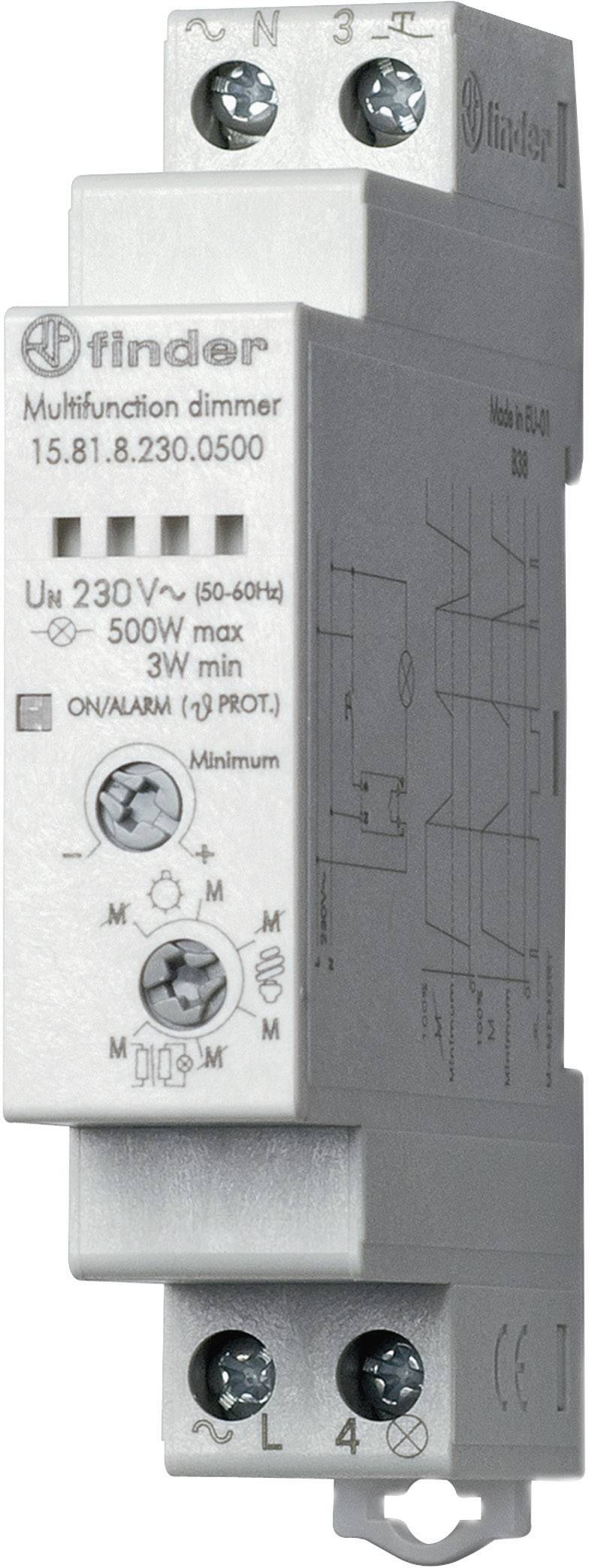

Dimmer för DIN-skena

Typ

15.81.8.230.0500

Driftspänning

230

Kontakttyp

1 NO

Växelspänning (max.)

230

Max. bryteffekt

500

Montageart

DIN-skena

Min. temperatur

-10

Max. temperatur

+50

Bredd

17.5

Höjd

60.8

Djup

88.8

Mått.

(B x H x D) 17.5 x 60.8 x 88.8 mm

Innehåll

1

RoHS-godkänd

Ja

Tillverkarfärg

Vit

Skyddsklass

IP20

Mounting method

Built-in installation

Assembly arrangement

Basic element

Method of operation

Push button

Colour

White

Halogen free

TRUE

Number of units

1

Connection type

Screwed terminal

Surface protection

Untreated

Power consumption

0.5

Frequency

50-60

Material quality

Duroplast

Material

Plastic

Type of fastening

Other

RAL-number (similar)

9010

Nominal voltage

230-230

Transparent

FALSE

Surface finishing

Matt

Suitable for degree of protection (IP)

IP40

Device width

17.5

Device height

60.8

Device depth

88.8

IFTTT support available

FALSE

Dimming phase cut-off (trailing edge)

TRUE

Dimming phase cut-on (leading edge)

TRUE

Compatible with Apple HomeKit

FALSE

Compatible with Google Assistant

FALSE

Compatible with Amazon Alexa

FALSE
